Pipe Inspection Waterproof Rating IP68 Drain Inspection Camera Kit for Accurate Inspections

Place of Origin China
브랜드 이름 Trio-Vision
모델 번호 TVS-2000HD
최소 주문 수량 1 단위
가격 협상 가능
Packaging Details CARTON
배달 시간 2-4 주
Payment Terms T/T
Supply Ability 100 units per month

무료 샘플과 쿠폰을 받으려면 연락하세요.

WhatsApp:0086 18588475571

웨이 채팅: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
원격 제어 사용 가능 회전 360도
운영 시스템 Windows/Android 보증 1 년
해결 고해상도 방수 등급 IP68
강조하다

IP68 waterproof pipe inspection camera

,

drain inspection camera kit

,

CCTV pipe inspection equipment

메시지를 남겨주세요
제품 설명

Product Description:

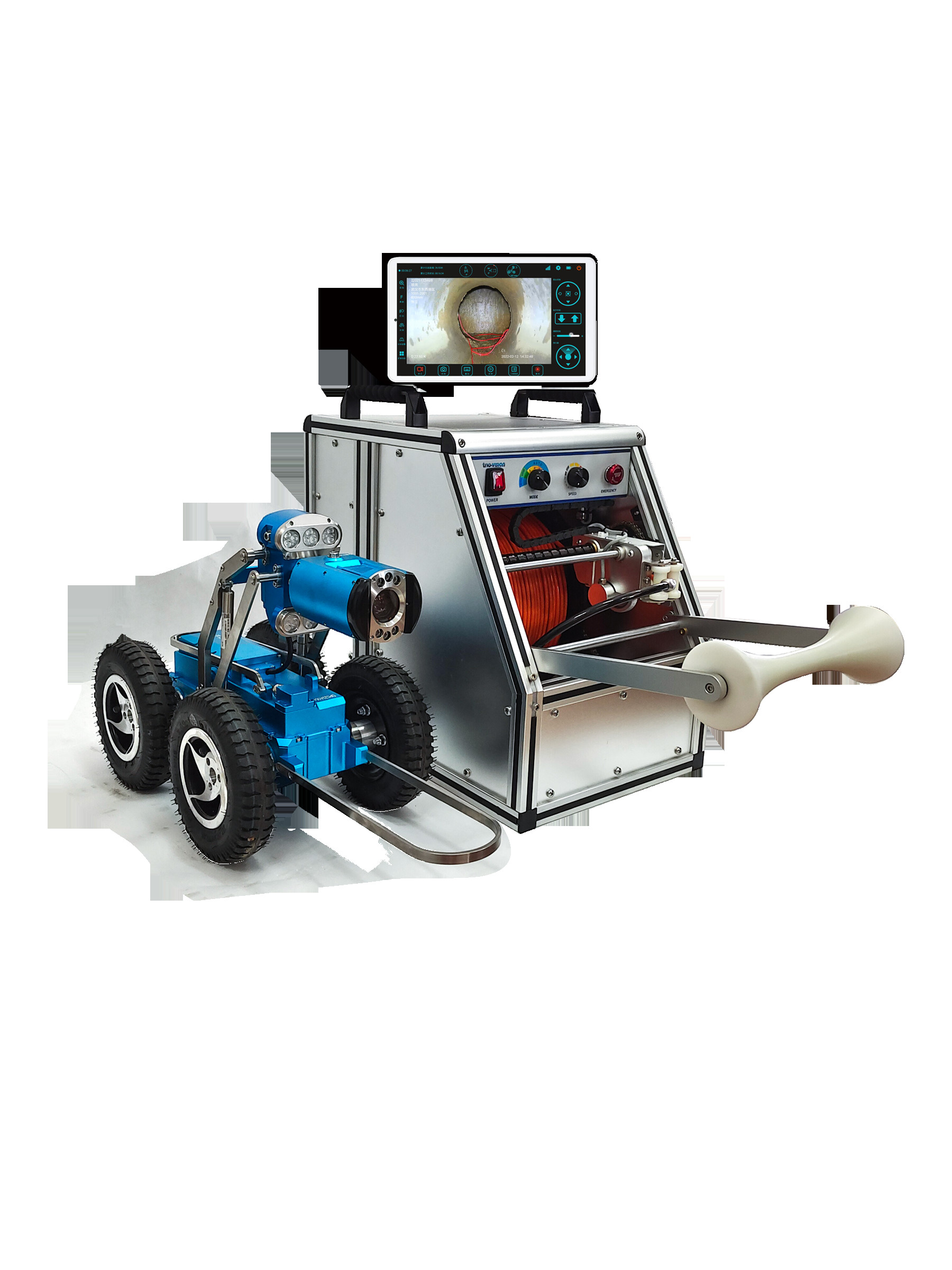

TVS-2000 HD high definition pipe inspection crawler is for sewer/drain/mainline video inspection, and suitable for pipe diameter is from 150-1500mm. The system is composed of controller(Android of Windows control), crawler, camera, cable drum. By using Wifi transmission, it can controlled by tablet or laptop, more convinient and portable. experience unparalleled performance and reliability.



Features:

1)High definition camera with 1080P definition
2) Wireless control by tablet or laptop
3) Windows/ Android control software
4) Sonde location
5) Pan and tilt camera, pan 360°, tilt 2 * 90°
6) 10:1 optical, 12:1 digital zoom



Technical Parameters:

Pipe Inspection Waterproof Rating IP68 Drain Inspection Camera Kit for Accurate Inspections 0
Control Unit ZKQ-300HD

  • Integrated industrial controller, high definition LCD touch screen
  • 10” LCD, sunshine readable, built-in collecting and analysis software
  • Windows 10 system, Intel i series CPU, large capacity storage, 256G solid hard disk
  • Waterproofed keyboard, full physical key operation, easy operation
  • Portable design, convenient for mobile and outside working.
  • Interface: VGA*1, USB*2, HDMI*1, ethernet*2, data*1
  • Weight: 5.5kg
  • Dimension: 405*265*114mm
Pipe Inspection Waterproof Rating IP68 Drain Inspection Camera Kit for Accurate Inspections 1
Pan&Tilt Camera JT-100HD

  • High definition camera, embedded adjustable LED light
  • Axial 360° rotation, radial 270° rotation
  • 120 times zooming(12:1 digital, 10:1 optical)
  • Manual and auto focus
  • Anti-fogging camera lens
  • Laser gauge (optional)
Pipe Inspection Waterproof Rating IP68 Drain Inspection Camera Kit for Accurate Inspections 2

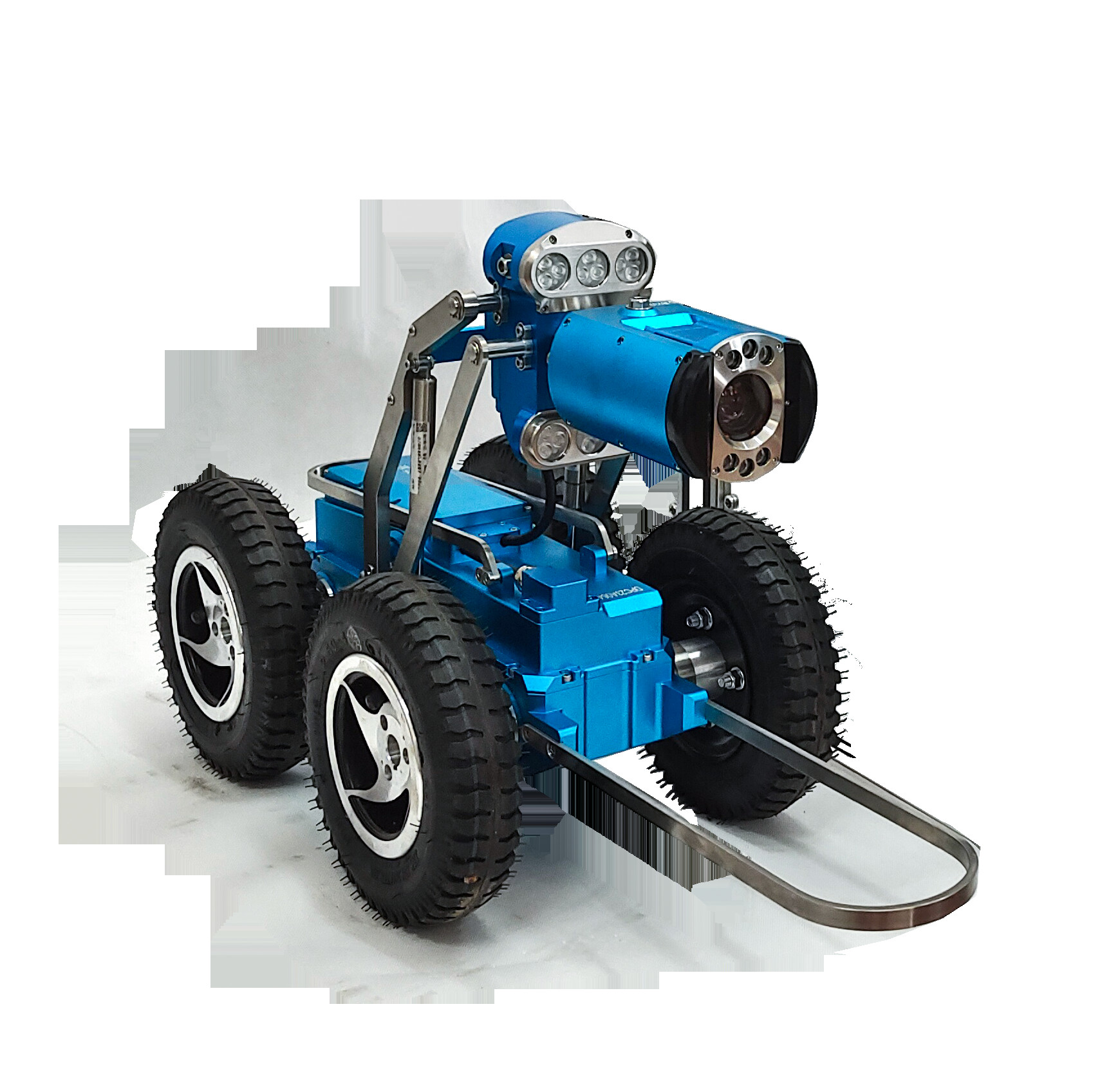

Cralwer ROBOT-300HD

  • For pipe diameter from 250-1200mm
  • Driven by two brushless DC motor, powerful drive
  • Electrical elevator, 6 sets of auxiliary lights, HD rear camera lighting
  • Forward, backward and steering dumping warning
  • Climbing angle 45 degree
  • Waterproof: IP68, 10m under water
  • Multi-frequency sonde(512Hz, 640Hz, 8KHz, 33KHz) optional
  • Weight: 16kg
  • Dimension: 732*231*173mm
Pipe Inspection Waterproof Rating IP68 Drain Inspection Camera Kit for Accurate Inspections 3
Cralwer ROBOT-150HD

  • Six wheel drive, for DN125-300mm
  • Multi-frequency sonde(512Hz, 640Hz, 8KHz, 33KHz) optional
  • Weight: 9.6kg
  • Dimension: 426mm*203mm*134mm
Pipe Inspection Waterproof Rating IP68 Drain Inspection Camera Kit for Accurate Inspections 4
Automatic Cable Drum
DLPA-300HD
  • Three working modes: auto, manual and cable retrieving only
  • Video signal and control command, transmission without delay and loss
  • Auto distance measurement with high accuracy meter counter, emergency stop and brake
  • Portable design, convenient for moving and outside working
  • Cable length: standard 120m, max. 300m optional
  • Dimension: 580*390*520mm
  • Weight: 50kg
Pipe Inspection Waterproof Rating IP68 Drain Inspection Camera Kit for Accurate Inspections 5
Manual cable drum DLPM-150HDE(Optional)
  • Embedded battery for power supply, working time over 8hrs
  • No delay and loss transmission of video signal and control command
  • Emergency stop and brake
  • Manual cable retrieving and auto layering
  • Portable design, convenient for moving and outside working.
  • Dimension: 510*400*450mm
  • Weight: 39kg

Pipe Inspection Waterproof Rating IP68 Drain Inspection Camera Kit for Accurate Inspections 6
