Android Operation System Pipe Inspection Camera System with High Resolution Wireless Control

Place of Origin China
브랜드 이름 Trio-Vision
인증 CE
모델 번호 QPAD-HD
최소 주문 수량 1 단위
가격 US$3000-US$4000
Packaging Details CARTON
배달 시간 7 일
Payment Terms T/T
Supply Ability 100 units per month

무료 샘플과 쿠폰을 받으려면 연락하세요.

WhatsApp:0086 18588475571

웨이 채팅: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
애플리케이션 하수/배수관 보증 1 년
원격 제어 사용 가능 해결 고해상도
방수 등급 IP68 운영 시스템 Windows/Android
강조하다

Android pipe inspection camera

,

wireless pipe inspection system

,

high resolution pole camera

메시지를 남겨주세요
제품 설명

Product Description:

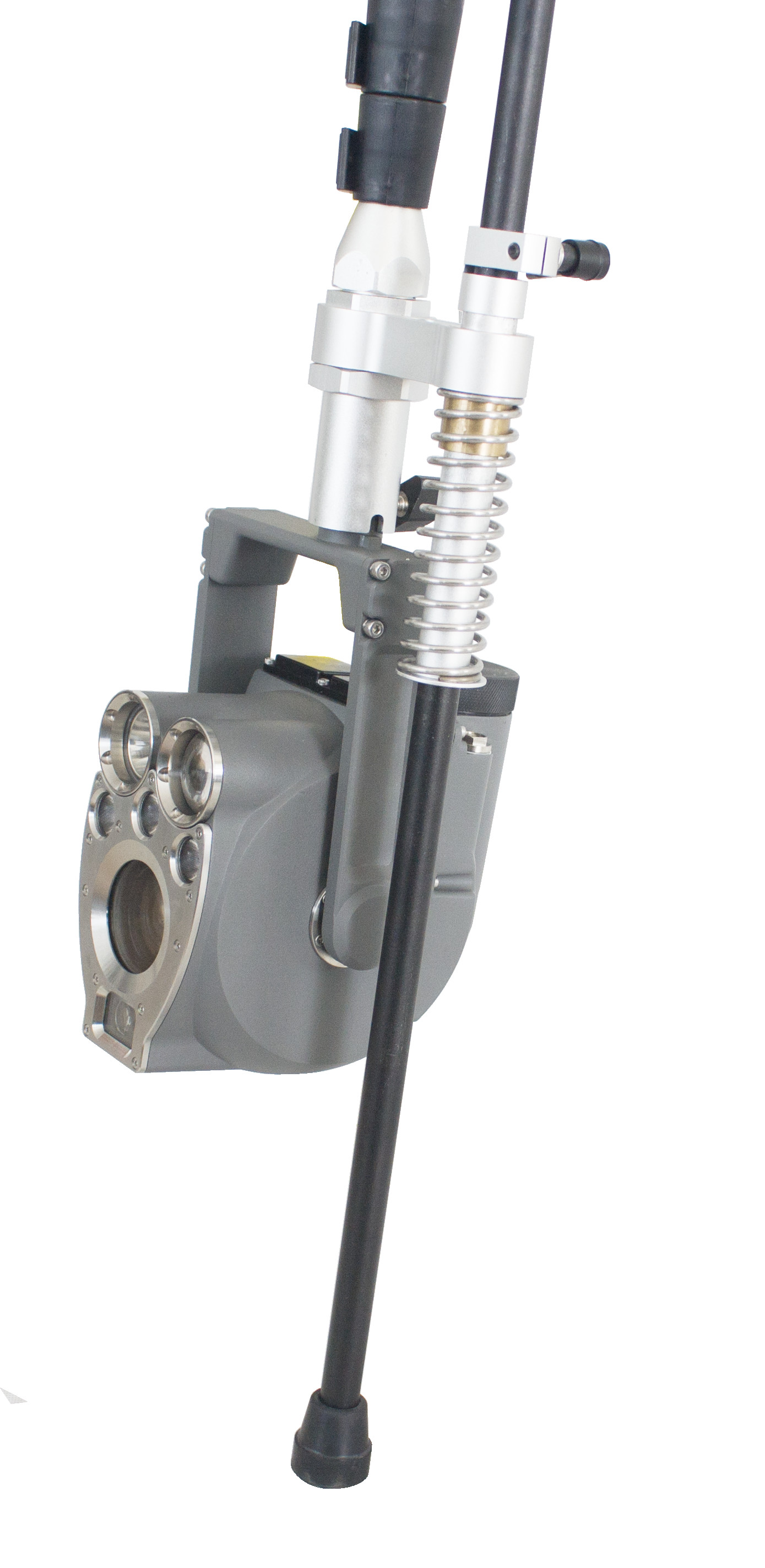

The High definition pole inspection camera can be used to locate defects or to identify a blockage at a manhole, access point or other entry point without entering the line or structure. The equipment incudes dual beam high-intensity discharge lights to provide maximum lighting capacities in all pipe conditions. The LED brightness has multiple user-selectable settings.



LED lights generate less heat, require lower power consumption, and provide brighter illumination than most another option. The product also has an optional laser distance measurement device, this feature is used to measure the distance to an object, the depth/width of a manhole, or the diameterof a pipe. The laser measurement option adds additional valuable enhanced information with accuracy within millimeters at 325 feet.



Precisely measure the object distance, with a precision of millimeter, which can help you position the pipe defects and provide exact distance for later engineering.
Measuring distance 0.1-100m, typical precision ±1mm.
Measuring frequency 20Hz, video overlay the measuring results.



Features:

  • High definition camera
  • 1920*1080P videos and photos
  • Swift, accurate inspection
  • Lightweight pole
  • Zooming: 240:1
  • Waterproof: IP68


Technical Parameters:

Android Operation System Pipe Inspection Camera System with High Resolution Wireless Control 0

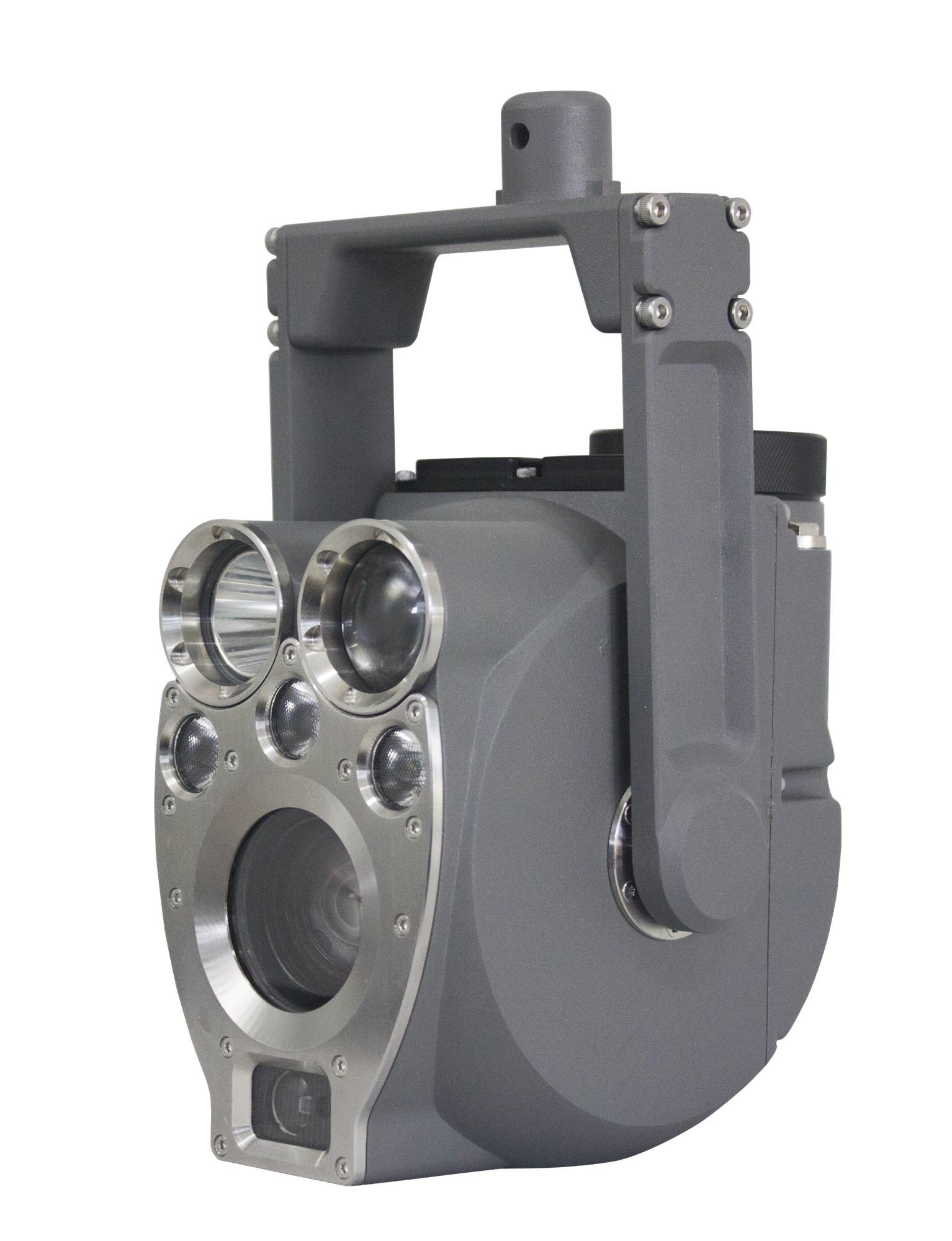

Camera



Digital high resolution: 1920*1080P
High quality image Zoom: 240:1(24:1 optical, 10:1 digital)
LEDlamp, with 1/4" CCD component and 0.1Lux high sensitivity CCD component, far measuring distance
Auto focus
Motorised camera head to control up and down
Waterproof IP68, 10m underwater



Android Operation System Pipe Inspection Camera System with High Resolution Wireless Control 1

Standard pole





Telescopic pole

1.2m*5 pole
Material: carbon fiber
Characteristics: compressive strength 100Kg

Support pole
Guage(total length 80cm ,10cm/scale)




Battery

Android Operation System Pipe Inspection Camera System with High Resolution Wireless Control 2


Replacement rechargeable Nimh battery
8 hours life

capacity: 3.4Ah

Controller Designed to use a Windows 10 tablet PC in the field capturing the HD video and photos directly into the device for back up after the inspections are complete. Integrated control, display and storage in one. The light, zoom, focus, camera tile are controlled by finger touch.


Android Operation System Pipe Inspection Camera System with High Resolution Wireless Control 3



Android Operation System Pipe Inspection Camera System with High Resolution Wireless Control 4
